4-72 C型離心風機
防腐耐磨 風力強勁 高效排風
Anti-corrosion and wear-resistant, strong wind, efficient exhaust

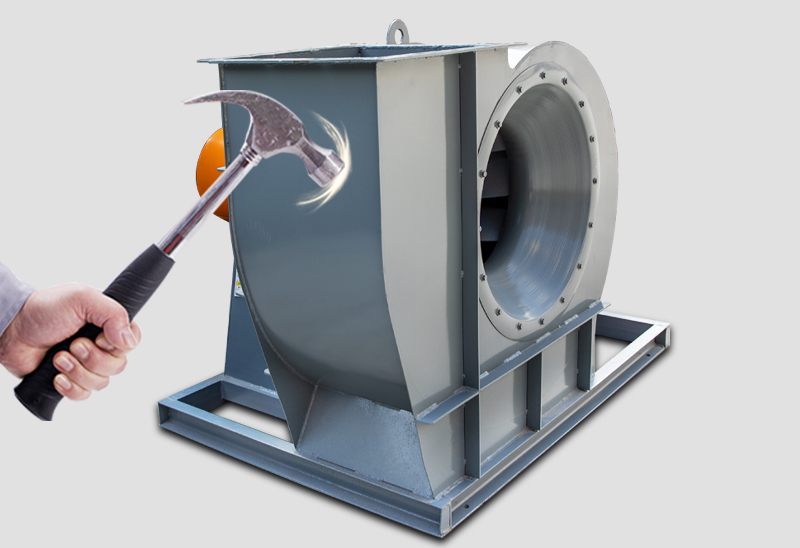

加厚碳鋼外殼
激光切割精準成型，表面光滑平整，外形美觀，防腐耐磨
Laser cutting precision shaping, smooth and flat surface, beautiful appearance,?anti-corrosion and wear-resistant

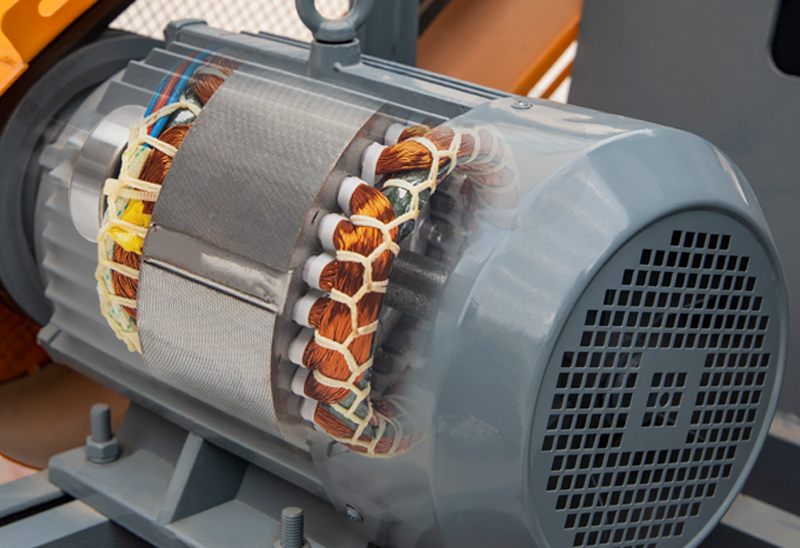

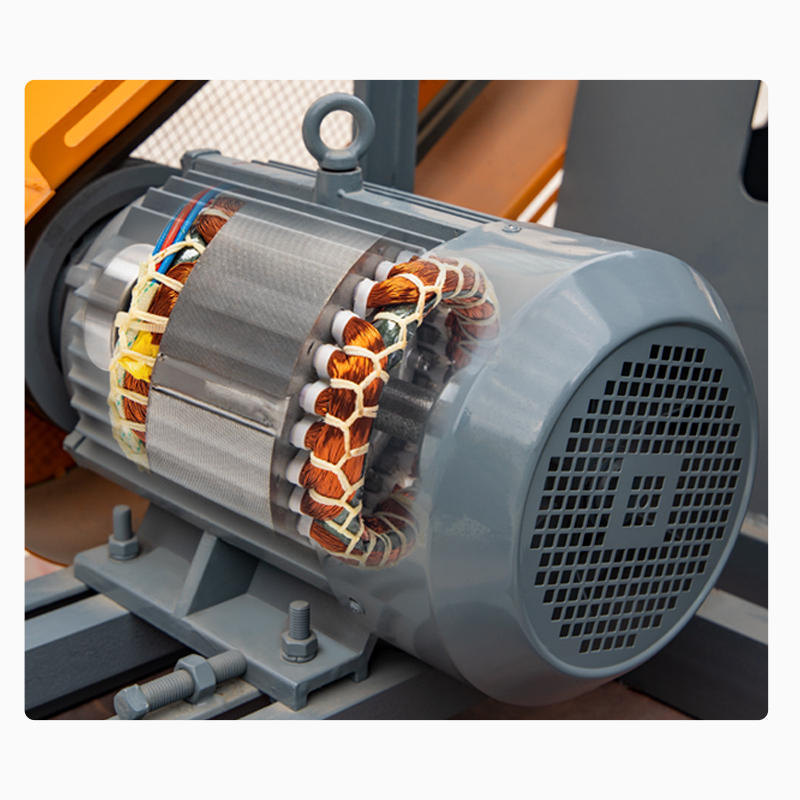

全銅電機
國標全銅電機，具有效率高、發熱少不易燒毀等特點
The national standard copper motor has the characteristics of high efficiency,?less heat and not easy to burn.

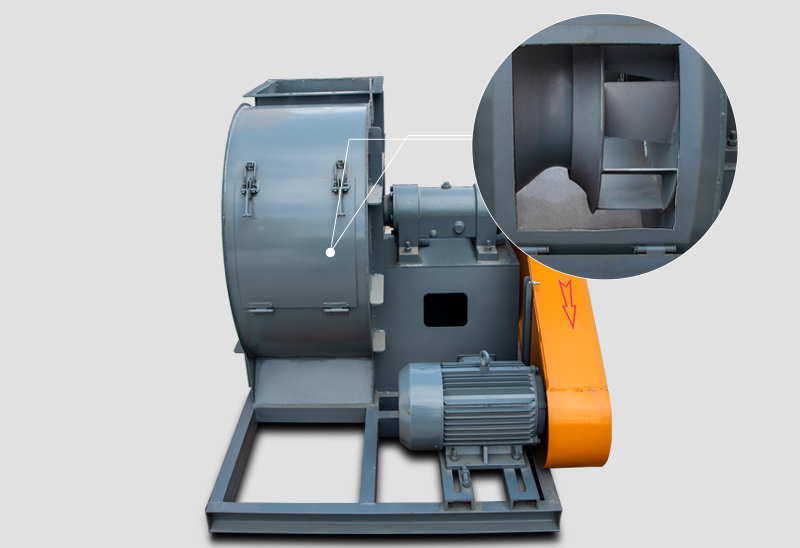

清渣口
打開清渣口，可清理葉輪處的殘?jiān)阌谌~輪的清理于維護
Open the cleaning port to clean up the residue at the impeller, which is convenient for cleaning and maintenance of the impeller
皮帶傳動
兩根皮帶帶動電機運轉，降低工作噪音，安裝維護更方便
Two belts drive the motor to run, reduce working noise, and make installation and maintenance more convenient

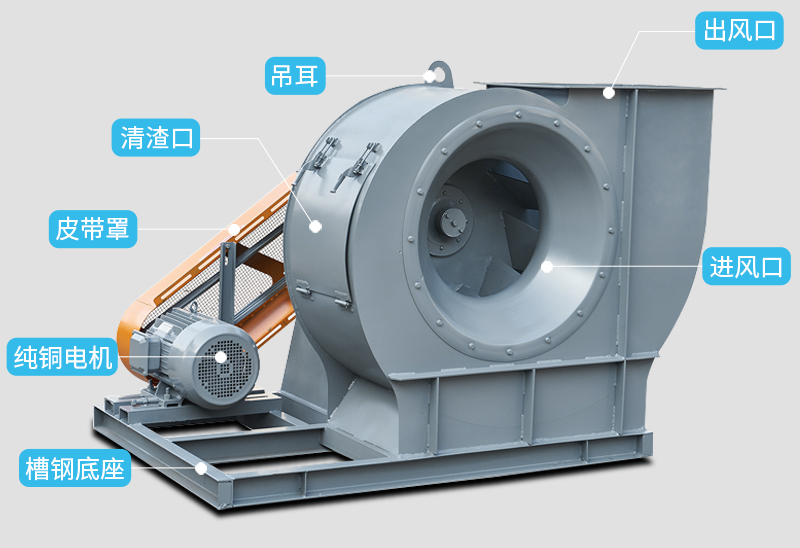

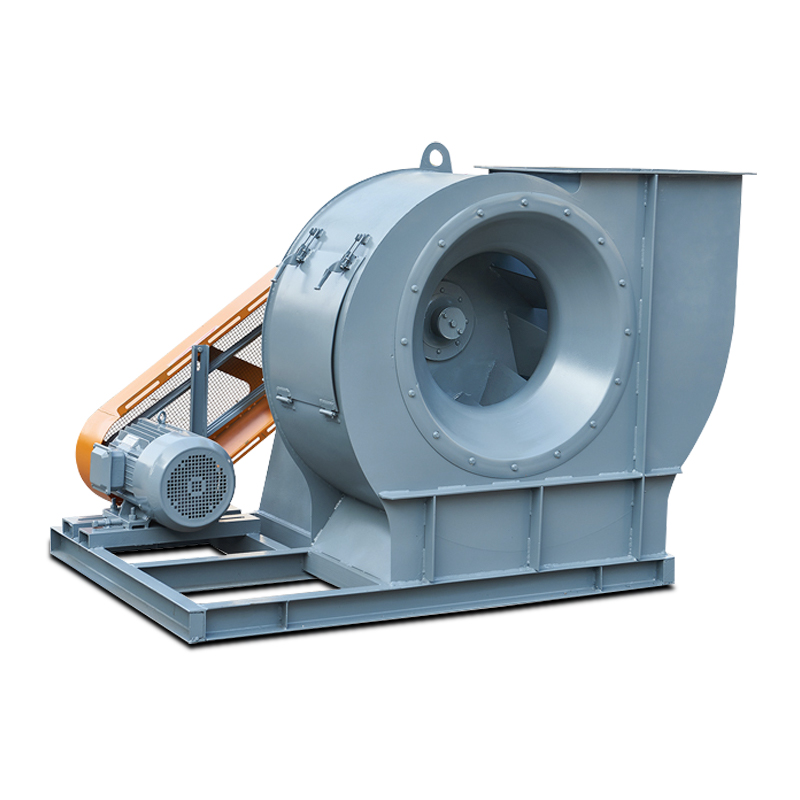

外觀解析
連體結構，皮帶傳動連接電機，方便后期維護；碳鋼外殼，牢固耐用
One-piece structure, belt drive connected to the motor, convenient for later maintenance; carbon steel shell, firm and durable

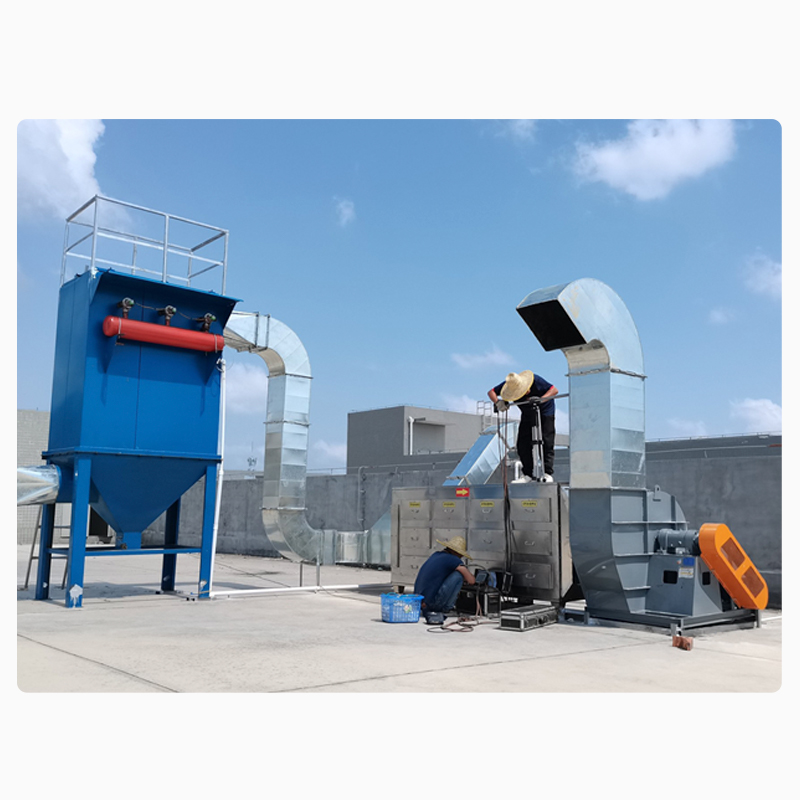

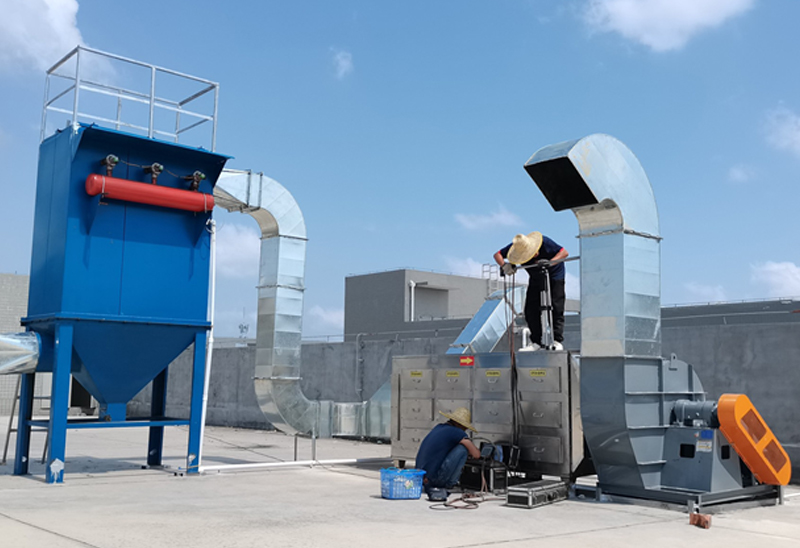

使用場景
廣泛應用于鍋爐廠、發電廠、造紙廠、煉鋼廠等場合
Widely used in boiler plants, power plants, paper mills,?steel mills, etc.
4-72C型皮帶式傳動系列離心通風機廣泛應用于工廠礦業、賓館酒店等大型建筑的室內通風換氣、降溫除塵等用途，也可以用于輸送物料、空氣及無腐蝕性不自燃、不含粘性物質的氣體。

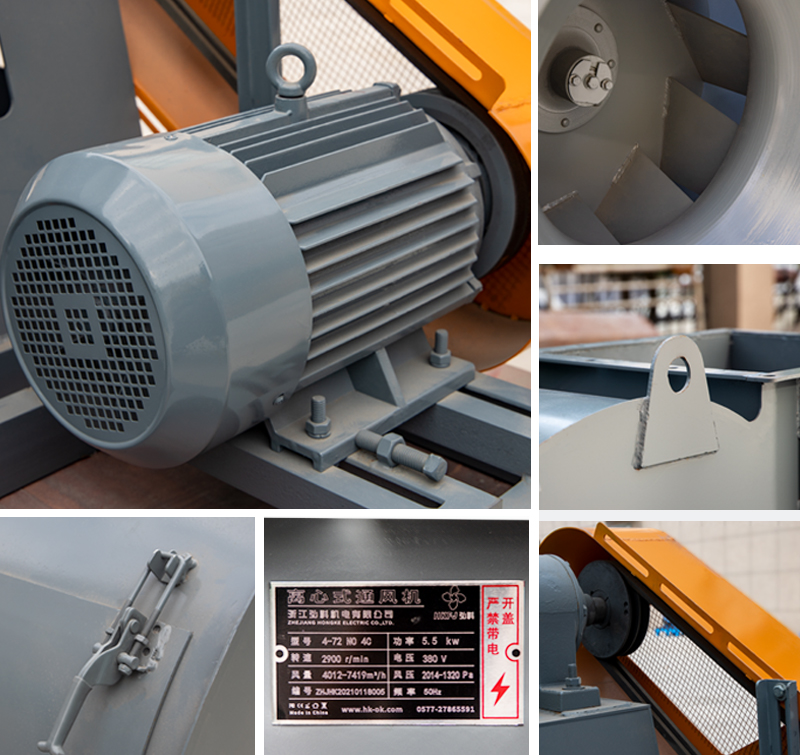

產品細節

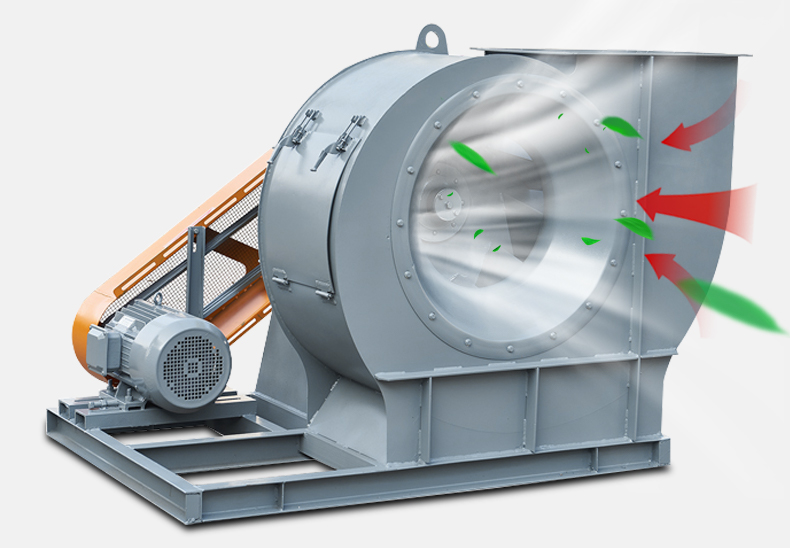

旋壓進風口，風量風壓達標；后傾式葉輪、皮帶傳動、導軌設計,運行穩健
Spinning air inlet, air volume and pressure up to standard; backward-inclined impeller, belt drive, guide rail design, stable operation

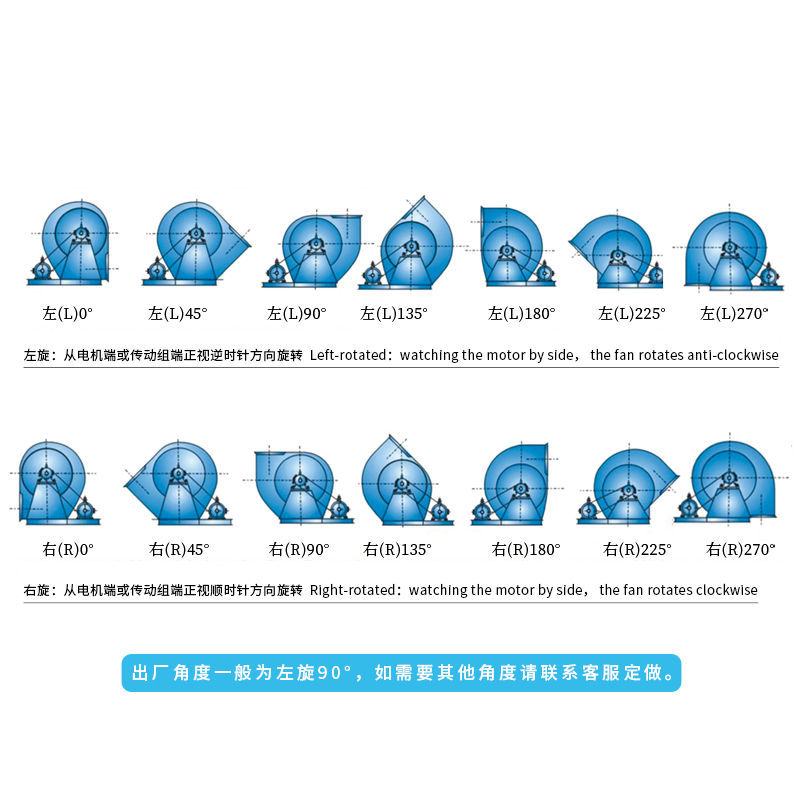

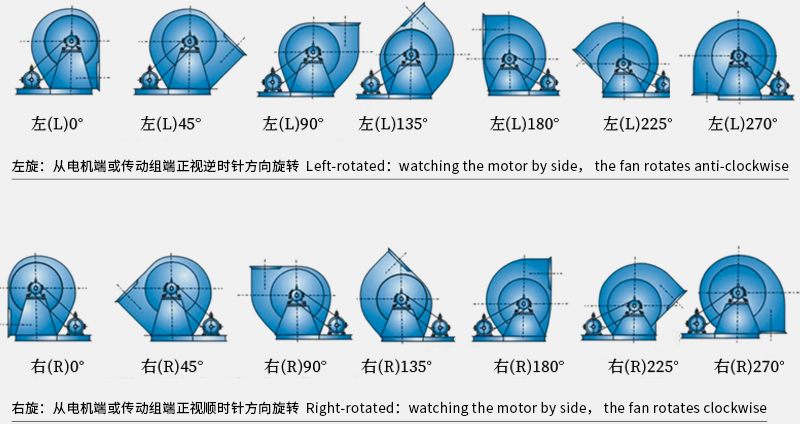

角度示意圖
出廠默認為左旋90°，如需其他角度請聯系客服定做
The factory default is 90° left-handed, if you need other angles, please contact?customer service for customization
出廠角度一般為左旋90°，如需要其他角度請聯系客服定做。
技術安裝參數

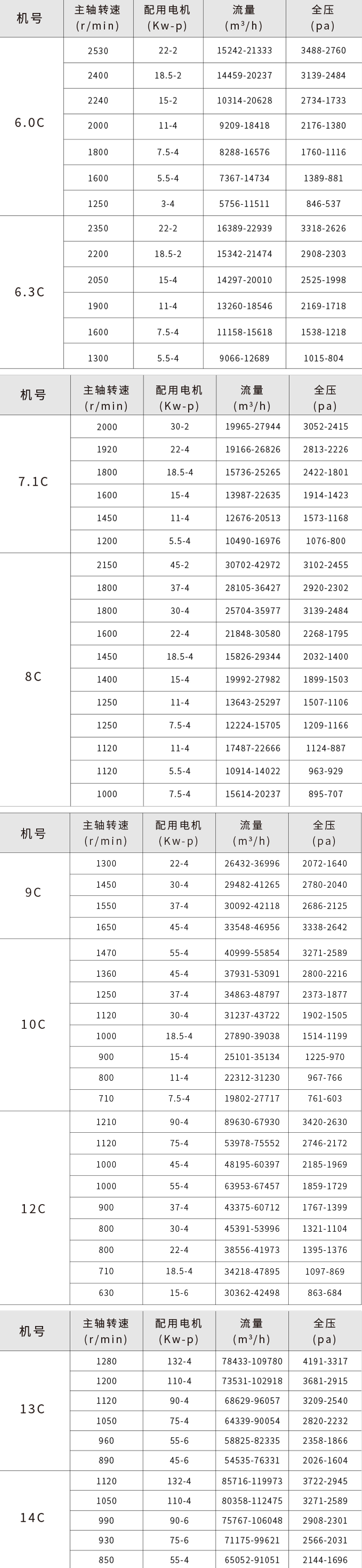

4-72C型離心風機 ·型號選擇
Model selection

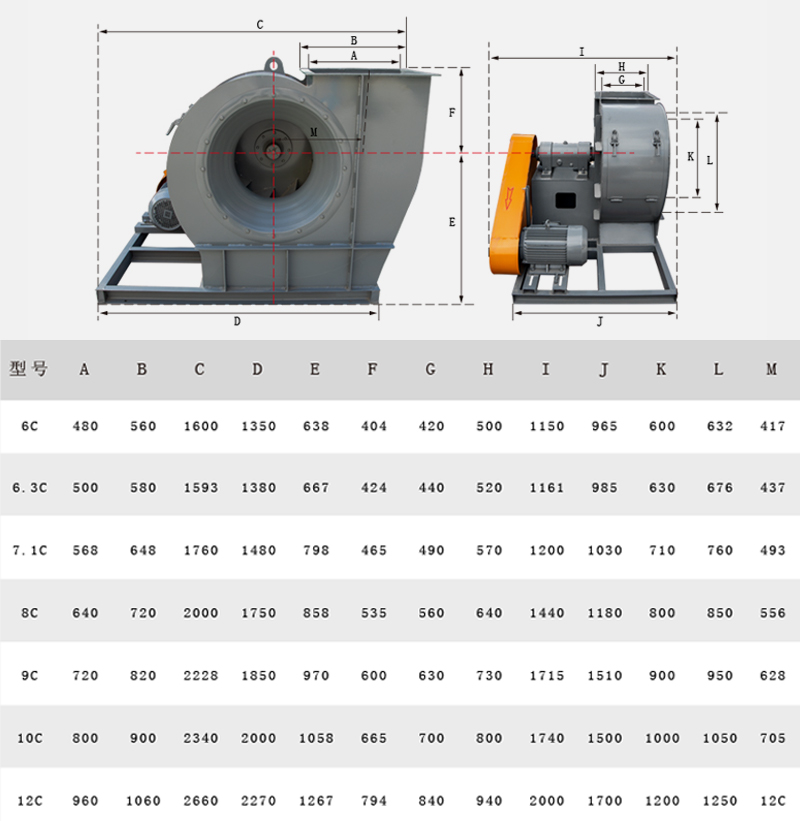

尺寸示意圖
4-72C型離心風機部分型號尺寸參考如下，單位為毫米
The dimensions of some models of 4-72C centrifugal fans are as follows, the unit is mm
